US 2 DCQC Inaugural EV Rally

| | Comments (0)

On Saturday, June 16, 2012, a dozen electric vehicles made the inaugural drive along US Highway 2 over the 4,061-foot summit at Stevens Pass utilizing the newly-installed quick charge stations. Most of these vehicles recorded data for driving and charging; this blog is a summary and analysis of that data.

Cars charging at the DCQC and Level 2 stations in Skykomish, WA.


We have analyzed this data as well as measurements from other driving and have created pages with information on planning an EV road trip, including guidelines for predicting energy use based on drive conditions and tips for avoiding quick charging pitfalls.

Thanks to Ron Johnston-Rodriguez for all his work getting electric vehicle charging stations installed along US 2 and organizing this event.

Route

This event marked the official opening of DC quick charge (DCQC) stations in Sultan, Skykomish, Leavenworth, and Wenatchee, WA. It was also a test of the spacing between stations. Tom had helped with the US 2 electrification process by collecting data for driving this route in our Tesla Roadster in December, 2010, so we had good information on the energy use required for each segment.

With a carefully-orchestrated schedule from Ron, each vehicle was assigned a charging period at each station. This added a unique constraint, as vehicles would not necessarily have sufficient time for a full charge at the DCQC stations. We provided suggestions for a target charge level when departing each location and the expected energy required to comfortably reach the next station. The most demanding segment was the one over Stevens Pass; our guidance included a recommended state-of-charge level at the summit so drivers would know whether they should stop for Level 2 charging at Stevens Pass ski resort.

We got nifty SWAG from Leavenworth and Wenatchee!


Cars

We have data from 8 Nissan LEAFs, 1 Mitsubishi iMiEV, and 1 Tesla Roadster.

The DCQC spacing worked great for the LEAFs.

The iMiEV was able to make the drive with additional charging for the segment over the pass (charging Level 2 at Stevens Pass in both directions and Level 1 at Nason Creek for the westbound trip).

The Roadster can't use DCQC stations, but with its longer range didn't need much extra energy use. Tom was able to "opportunity charge" at Level 2 while we charged our LEAF and participated in the ribbon-cutting ceremonies.

Data

For those interested in all the gory details, the data and analysis are in this spreadsheet (XLS, 214k).

Drivers recorded information on time, distance, energy, temperature, and driving conditions. The details are in the individual EV# sheets. There are summary sheets for driving and charging that compare the data for multiple vehicles.

The iMiEV (EV1 in the spreadsheet) used an amount of energy similar to the LEAFs.

There were three LEAFs with after-market state-of-charge (SOC) meters that enable more precise monitoring of battery state than the factory instrumentation. These meters show the SOC as a percentage, and also in a unit called a "gid," which represents 80 Wh of energy in the battery. The gid values fell nicely in the range of values based on the LEAF's more coarse SOC bars.

We drove our LEAF (EV4) and Roadster (EV4b) together so that we could compare energy use for the same driving conditions. They turned out to be very similar; there is a summary sheet showing the data for both cars together.

Thanks to everyone who collected and shared data: Patrick, Phil, Lee, Jeff & Mary Lynne, Matt & Laura, Bruce, George, and Mike & Kimm.

EV drivers at the US2 DCQC inaugural ceremony in Wenatchee, WA.


Photo by Jessie Lin, WSDOT. Used by permission.

Quick Charging

DCQC stations made it practical to make this trip (and the return) in a single day. We learned several things about the stations with all the data collected by drivers during this event.

One of the most enlightening was confirmation of an observation during our prior DCQC experience: the station-reported SOC is not a useful indication of the car's charge.

When using a DCQC from under 50% to get to 80%, the LEAF's charge rate averaged 400-500 Wh/minute. When charging from over 50% to "full," the charge rate averaged about 200 Wh/minute.

The charging overhead (energy from the station that didn't make it into the battery) was 10-18%.

More details on DCQC are on our page with tips for avoiding quick charging pitfalls.

Driving

For each drive segment, these are the minimum and maximum kWh (and corresponding gids and bars) used between the DCQC stations. The energy use will vary based on speed and weather conditions.

Trip miles kWh gids bars
Eastbound
Sultan to Skykomish 26.4 7.20 - 8.24 90 - 103 4.5 - 5.2
Skykomish to Leavenworth 51.0 12.24 - 14.88 153 - 186 7.7 - 9.3
Leavenworth to Wenatchee 20.5 2.40 - 2.48 30 - 31 1.5 - 1.6
Westbound
Wenatchee to Leavenworth 22.3 5.60 - 5.84 70 - 73 3.5 - 3.7
Leavenworth to Skykomish 51.0 12.48 - 13.60 156 - 170 7.8 - 8.5
Skykomish to Sultan 26.5 4.80 - 7.04 60 - 88 3.0 - 4.4

Conclusions

The spacing of the DCQC stations along US 2 over Stevens Pass works well for LEAF drivers. Level 2 charging at the pass is either helpful or mandatory for iMiEV drivers, depending on the driving conditions.

We believe that an SOC meter is a valuable tool when making a trip like this, especially when pushing the range limits of the car. Because we'd projected our energy use for each segment and had a meter providing a higher resolution SOC reading, we were able to minimize the amount of time that we spent charging — including successfully skipping one station — and return home with a comfortable buffer.

1,823-Mile Oregon Coast Tesla Road Trip

| | Comments (0)

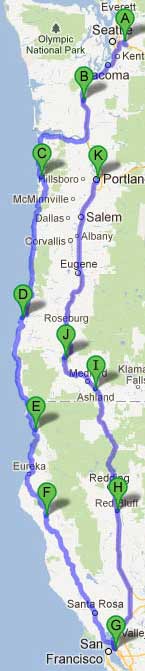

roadtrip-route-thin.jpgCathy and I took an 1,823-mile electric vehicle road trip to attend the Plug In America board meeting in Berkeley, CA, on June 23rd, 2012. Ever since we took delivery of our Tesla Roadster in June of 2009, I've wanted to take it on a long road trip just to have the experience. Over the past three years, the challenge of making the drive from Seattle to California has been greatly reduced. When Rich Kaethler took delivery of his Roadster in San Carlos, CA, and drove it back to Seattle in August of 2009, and Chad Schwitters made his long trek from Seattle to San Diego and back in April of 2010, these were pioneering efforts. Now we have full speed (240V/70A) Tesla charging along I-5 from British Columbia to southern California, which makes it possible to do the Seattle-to-San Francisco drive electrically in just a couple of days.

However, Cathy and I wanted to take a more leisurely approach and add some new territory to the EV road trip experience, so we made our way down the Oregon and California coast on highway 101, eschewing the more convenient charging established on I-5. Here's what we did, what we learned, and a few adventures we had along the way.

Our Tesla Roadster has a range of about 240 miles at 55 to 60 mph on level freeway in moderate weather. In practical terms, that means we can generally drive 180 to 200 miles without any need to charge in the middle. About four hours of driving per day is our threshold for convenient travel and leaves plenty of time to enjoy a leisurely drive and see the sights, which works well with the Roadster's single charge range.

The coastal drive is a bit of a challenge because there is almost no installed public charging infrastructure. Fortunately, all we need is a power source, and one of the best sources for power is the 240V/50A service commonly available at RV parks. Finding charging is actually pretty easy; the challenge is finding a place to charge and a place to sleep nearby. Cathy did careful planning in advance, finding hotels and motels that either provided charging or were adjacent to EV-friendly RV parks.

Day 1 Because we had a four-hour delay from our intended start time, we cheated and took the easy route south down I-5 toward Portland, taking advantage of 70A charging while eating lunch at Burgerville in Centralia. That gave us enough juice to remove any chance of range concern for our 237-mile drive.

For our first night, Cathy found what turned out to be a wonderful location, the Harborview Inn and RV Park in Garibaldi, OR. The Inn is a modest little motel, but it and the RV park are right on the harbor, which was hard to appreciate when we arrived shortly after sunset, but treated us to a beautiful view as fog was lifting from the harbor when we woke up in the morning.

The restaurant options in Garibaldi were pretty limited, so we got dinner in Seaside on the way, then ate breakfast in a dodgy little place in Bay City.


Day 2 We made a couple of stops in Lincoln City where there are two locations with two ChargePoint charging stations each. We didn't find much to do near either location, and we didn't really need to charge, so we took off after a quick bit of exploring.

Cathy found some information online about the many wonderful historic bridges along the Oregon coast, so we made that our theme for the drive. One of our favorites was Cape Creek Bridge.

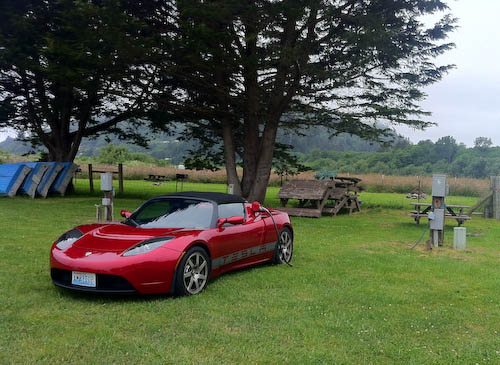

That night we charged at Charleston Marina RV Park in Charleston, OR. It cost us $23 to use an RV spot to charge overnight, but the folks were very nice and the manager expressed interest in installing EV charging stations. It was fortunate that we had a suite with a full kitchen at Charleston Harbor Inn, because there was very little in the way of restaurants open at the late hour of 5 pm on a Tuesday night. We bought some food at the local convenience store and made dinner.

Day 3 We took in the last of the Oregon coast historic bridges then crossed over into California with a quick stop at the Redwood National Park visitor information center in Crescent City. We stopped for a walk in the forest and a drive up to an overlook of the mouth of the Klamath River to watch gray whales feeding. Late that afternoon, we rolled into the Chinook RV Resort in Klamath, CA. They had all brand new 50A service in nice pretty enclosures that have a bar running right below the outlet, which prevented us from plugging in. The very helpful handyman was able to "modify" the enclosure on spot #2 so that we could plug in.

Restaurant options in Klamath are very limited. One place had a big sign out front that said "Now Open" which, as we found out, isn't the same as "Open Now"; they seem to only be open from 11:00 am to 2:00 pm for "breakfast." Another place had people loitering out front and a sign that said "armed guard on duty." That didn't sound very inviting! Again, we had a suite with a kitchen at the RV park, but we didn't have groceries and the only store open in town is a gas station convenience store. We ate at Steelhead Lodge, which is not even a little bit vegetarian friendly. Cathy asked for a baked potato with cheese and was told "we don't have cheese." Definitely, another good place to make dinner in the suite; be sure to do your shopping in Crescent City.

Day 4 Was our most fun driving day, taking the Avenue of the Giants, a portion of the old Highway 101 running parallel to 101, to drive through the Redwoods. Driving a quiet electric car on a road surrounded by the forest canopy was one of my top 2 all time Roadster drives. We also had probably our best meal of the trip, lunch at the wonderful vegetarian Wildflower Cafe and Bakery in Arcata, CA.

We spent the night at the historic Benbow Inn in Garberville, CA. They feature biscuits and tea in the afternoon, an elegant dining room serving a seasonal menu, a rich event calendar (an outdoor jazz concert the night we were there), and free EV charging via a 50A outlet. There's also an associated RV park, which we planned to use until we learned about the hotel charging option. It was the priciest hotel we stayed at, but we just couldn't resist trying out a previously unknown EV-friendly hotel.

Day 5 We needed to drive 213 miles. Just to be safe, we stopped at what turned out to be two SemaCharge stations at Coddingtown Mall in Santa Rosa, CA. Although we'd heard reports that SemaCharge stations don't work with 2010 and later (v2.x) Tesla Roadsters, we were quite pleasantly surprised to find the one we tried worked flawlessly with our 2008 (v1.5) Roadster.

For our hotel in the Bay area, we chose the Four Points Sheraton in Emeryville because it was the closest EV-charging hotel to the Plug In America board meeting in Berkeley. (How can Berkeley not have a ton of public charging? What's up with that?)

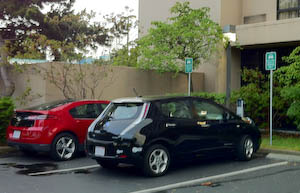

Unfortunately, we weren't the only ones to figure out that this is the only charging station near Berkeley as we were unable to use the level 2 ChargePoint station until over 12 hours after our arrival. When we arrived, there was a Volt charging. While we were out for dinner, a Leaf pulled in and started charging from near empty. I happened to wake up way too early and could see the Leaf had finished, so I dashed down to start charging at 5:25 am. I didn't want to leave our very expensive adapter cable out all day, so I took a chance and unplugged when I left to take the bus to the board meeting. Fortunately, I was able to plug back in that evening, finish the charge that night, and top off again in the morning. When we left, a plug-in Prius was using the Level 1 station. When we got home, I checked the data from my Plug In America charging infrastructure study and found that station is one of the most-used ChargePoint stations in the country, averaging 11 hours of use per day.

Neither the Leaf nor the Volt were driven by hotel guests, and the hotel staff was completely unconcerned that a guest was blocked from charging for over 12 hours. "Those stations are there for the public to use." That's all good, but we chose the hotel because of the charging station. Because of the high use rate, and no preference given to guests, I can't recommend this hotel for a single night stay where charging an EV is required.

Day 6 I attended the board meeting. Cathy visited the California Academy of Sciences at Golden Gate Park and had a quite an adventure with the bay area bus systems, but that could be a blog all on its own.

Day 7 There are a series of Tesla charging stations along I-5 making it possible to drive from the Bay Area to Seattle in two days. We wanted a more leisurely experience, so didn't need use any of them until we were almost home. Our first overnight was in Red Bluff, CA. We stayed at a Super 8 motel and charged across the street at the Rivers Edge RV Resort where we had another adventure. They claimed to have three 50A outlets, but we had to scrounge through the park to find them. We tried five that didn't have power until we finally found success with the sixth. The manager and the park handyman were very supportive and helpful. We ate a tasty late lunch at the New Thai House; the Yelp reviews weren't kidding that the food is spicy. We also took in a movie at the local cinema.

Day 8 In Red Bluff, the Tremont Cafe and Creamery is a decent place for breakfast, although we enjoyed the historical notes on the menu more than the missing-in-action service.

Although we only needed to drive 176 miles to Ashland, OR, we had to climb over the Siskiyous Mountains which means climbing to 4,000 feet, dropping back down to 2,000 then up again to 4,000. We could have done it on a single charge, but decided to try out a charging site in Redding, CA, while taking a walk through the adjacent Lema Ranch Trails.

The Blink charging station was only delivering 187V (normally it's around either 208V or 240V), so we were only charging at about 75% of the rate we expected. This was fine for what we needed, but not so good if you're counting on a more typical Level 2 charging rate.

Historical note: while crossing the Siskiyous, we saw Tony Williams' Nissan Leaf speed by southbound, making the return trip from his BC2BC tour.

We arrived at the Chanticleer Inn in Ashland, OR, with plenty of charge remaining (25%) despite the serious elevation climbs along the way. Although there is a Level 2 station in Ashland, we arranged with Ellen at the B&B to charge from a 120V outlet. Since we were going to be there for 2 days, that was enough to get us charged (28.5 hours).

Day 9 We were in town to watch three shows at the Oregon Shakespeare Festival, so we spent a second night in Ashland and had a great time. Ellen was very accommodating, both of our charging needs and our vegetarian diet. She even invited a friend over to see the Roadster which turned into an impromptu car show for our breakfast mates from the inn. It was a much more pleasant stay than at the hotel with the oversubscribed Level 2 charging station.

Day 10 We had a full charge and only a 60-mile drive, so we got to enjoy full-blast air conditioning on a hot day, driving up and down a couple of mountain passes in the left lane not sparing the accelerator pedal at all. I tried to show some restraint, but I have to admit it was more fun for me behind the wheel than for Cathy in the passenger seat.

We charged at the Level 2 AeroVironment station next to the DC Fast Charger while spending the night at the historic Wolf Creek Inn.

Day 11 Nearing the home stretch, we detoured to Corvallis, OR, to visit a friend from the EV community who generously allowed us to charge in his garage while we went out for lunch and had a wide ranging chat about EVs, wacky diets, and lots more.

In Portland, we met up with John Wayland and had dinner with John and his daughter Marissa at our favorite neighborhood Thai place in Portland, Thanh Thao. Sadly, the wonderful Jaciva's chocolate shop and dessert bakery had closed too early for us to visit.

We had another adventure in charging at the Downtown Crowne Plaza. They have two Blink stations, which we've used before without issue. That night, we started a charge at 10:27 pm and hit the sack. At 11:58, my cell phone woke us up with an alert that the charge session had ended abnormally. Concerned that someone might be messing with the car or the adapter cable, I dashed out to check. Nothing was disturbed, but something had terminated the charge session. I can't say for sure whether the Blink station burped, or someone messed with the locking switch on the Tesla connector (and put it back), but I was very pleased that I had an OVMS box (similar to the Tesla Tattler) installed and set to text me if a charge is interrupted. Without that notice, we would have found a partially charged car in the morning and then had to wait five hours before we could depart.

Day 12 We made our usual 30-minute stop at Burgerville in Centralia, WA, for a quick bit of charge and a meal. We totally dig Burgerville for their healthy fare, including vegetarian options, environmental consciousness, and especially for the Tesla charging station they have provided since 2010. From there, it was an easy drive home.
